Quick Details

  • Condition: New, New
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: RD
  • Model Number: RD508MX
  • Voltage: 380V 50Hz
  • Power(W): 132KW
  • Dimension(L*W*H): 3380*1480*3180mm
  • Weight: 5.5T
  • Certification: CE/GOST/SGS
  • Warranty: One year, One year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Company: Liyang Rongda Machinery CO.,LTD.
  • Location: Liyang City,Jiangsu Province,China
  • Application: wood pellets making
  • Bearing: Original SKF
  • Drive type: Gear drive
  • Hole size: 6mm,8mm,10mm,12mm
  • Model: RD508MX
  • Certificate: CE/GOST

Packaging & Delivery

Packaging Details Seaworthy package for RD supply wood pellet mill
Delivery Time Shipped in 25 days after payment



Professional real manufacturer for wood pellet mill!



Hot sale! CE RD supply wood pellet mill



Details of wood pellet mill :



Main power:185kw



Feeder power:3kw



Conditioner power:11kw



Die diamater:678mm



Pellet size:6mm,8mm,10mm,12mm





Features



1. It is widely used to make pellets from light substance, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;



2. The feeder’s especial structure makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm3;



3. Feeder, conditioner and chute are made of stainless steel with long service life;



4. It is with magnet and over load protection system, which protects the machine during production;



5. Feeder has a variable speed controller to meet different outputs requirements;



6. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which will increase the output by 15% when compared to a machine with a belt conveyer;



7. The bearing and oil seal in the main drive are imported from Japan to ensure highly-efficient, stability and high quality;



8. The alloy steel die is with international advanced equipment and techniques, and has long service life, and can make  slippery pellets of the highest quality.





Main Technical Parameters



ModelMain Power(KW)Capacity(t/h)Pellet Size(mm)
RD350MX 55 0.5~0.7  6, 8, 10
RD420MX 90/100 0.8~1.5  6, 8, 10
RD508MX132/160  2.0~2.5  6, 8, 10
RD678MX 185/220 2.5~3.5  6, 8, 10





About us:



 We are specialized in designing and manufacturing poultry feed,aquatic feed pellet machinery,biomass pellet machinery and the complete production line(all auxiliary equipment) with CPM advanced technology.



The current products include: hammer mill, ingredient weighing system, mixer, pellet mill, counter-flow cooler, dryer, crumbler, rotary screener, liquid adding equipment, pulse filter equipment, horizontal and vertical conveying equipment, links and gates, permanent magnet cylinder, and de-iron equipment etc.



Liyang Rongda Machinery CO.,LTD. located in Daitou Industrial Zone with 25000 square meters area,Liyang city,Jiangsu province,China.





Goods are made by Rongda Company.



Wood pellet press machinery with broken bridge screw.

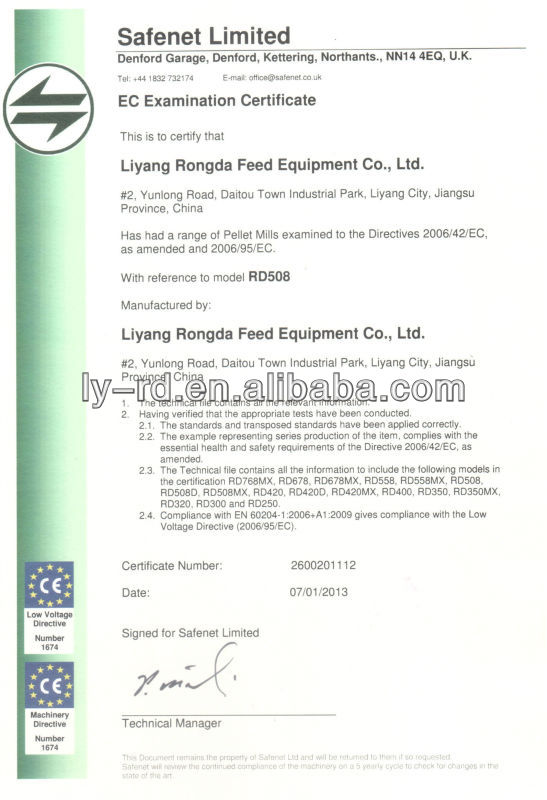

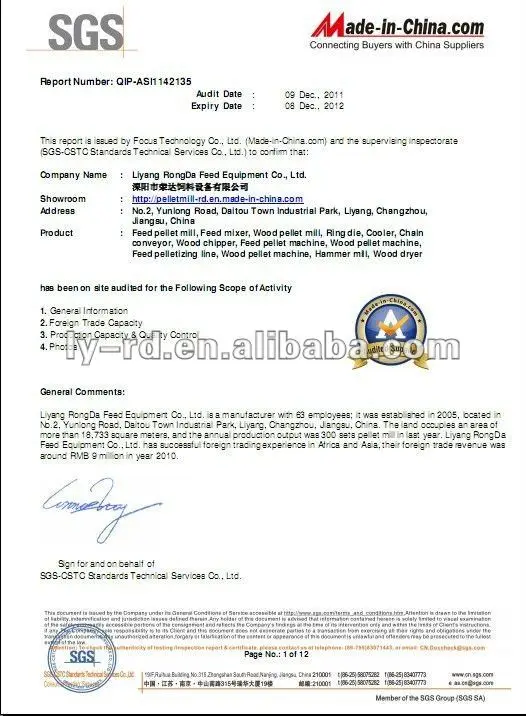

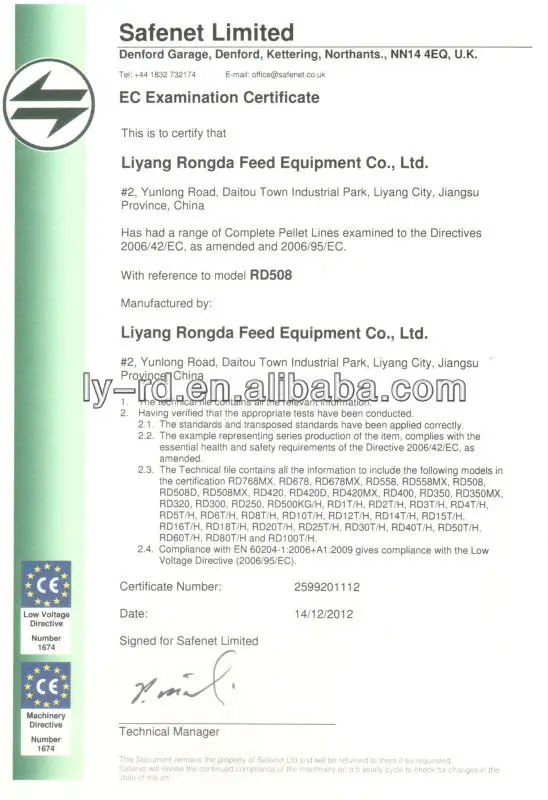

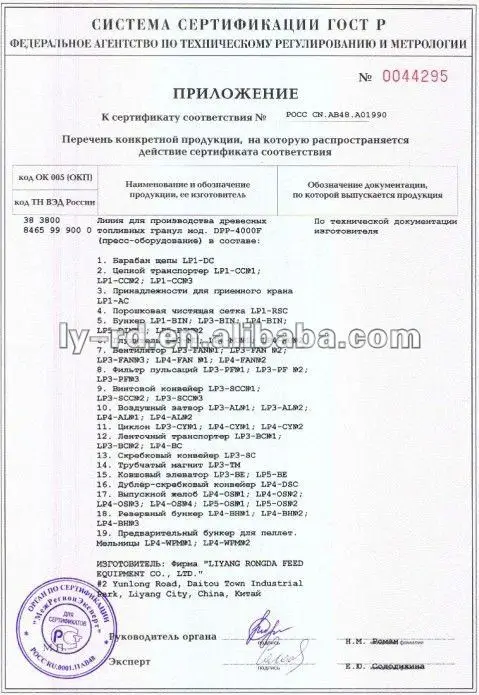

Our certificates:ISO9001:2000,CE,GOST,SGS


Delivery Management: When the container arrived our factory, our shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.




wood pellet press line production sequence



1. Peeling Process



2. Chipping Process



3. Drying Process



4. Grinding Process



5. Pelletizing Process



6. Cooling and Sieving Process



7. Packing Process



About Service



We insist on "Quality is the soul of company" and take customers as our god, owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team. We devote to all-round service of all the products from shipment to maintenance.


Our professional service includes: Free training, Guidance Installation and Debugging.



Guaranteed Time: One Year



If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.



Thank you for your reliance and support!





Frequently Asked Questions:



1. Q: Are you a trading company or a manufacturer?



 A: We are a manufacturer, which has almost 20 years of experience in this industry.



 2. Q: How can I get to your company?



 A: You can get a flight to Nanjing Lukou Airport. We are just about 40-50mins away from Nanjing Airport.



You may also come to our city,Liyang city by High speed Railway,just 20-30mins from Nanjing city.



3. Q: How long is your guarantee?



A: One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened.



4. Q: Will you send engineers to install the plant?



A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.



5. Q: Do you have some foreign customers using your equipment?



A: yes, we have.our company has established business relationships with customers in Russia,German,Slovakia,Ukraine,Vietnam,Pakistan, the Philippines, Indonesia, Thailand, Pakistan, Egypt ,Iraq, Iran,Jordan,Saudi Arabia,Syria, Libya etc.



Why choose from us?



A.Good reputation



Because of the good quality and credit,our company are with good reputation both at home and abroad.



B.Factory direct supply



This ensure the competitive price available and brand care.



C.Advanced technology adopted



American CPM advanced technology with rich experience on site for installation and debugging,which has the good ability to provide with aftersale service.



 D.Best and reasonable structure design of the pellet mill



This make sure the durability of the machinery running.



Gear drive of the pellet mill which make the pellet machine stronger for making the wood pellets.Compared with belt drive,with lower consumption for the same capacity.
